MC33932VW
Manufacturer:
Nxp Semiconductors
Mfr.Part #:
MC33932VW
Datasheet:
Description:

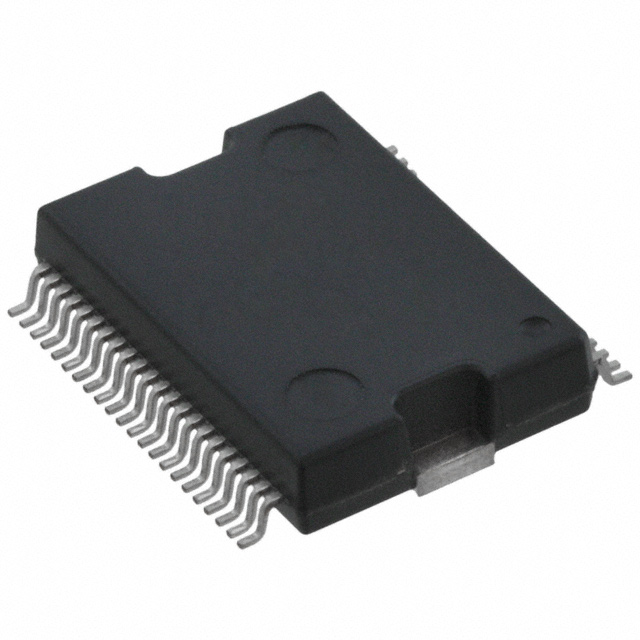

Motor Drivers HSOP-44 SMD/SMT Parallel Load voltage:5 V to 28 V Half Bridge
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 46 |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 1.899106 g |
| Interface | Parallel |
| Output Current | 5 A |
| Output Voltage | 7 V |
| Max Supply Voltage | 28 V |
| Min Supply Voltage | 5 V |
| Max Output Current | 5 A |
| Turn-On Delay Time | 1 ms |
| Operating Supply Current | 80 µA |
| Logic Function | AND |
| Output Configuration | Half Bridge |
| Number of Outputs | 14 |
| Rise Time | 3 µs |
| Nominal Supply Current | 80 µA |
| Number of Drivers | 4 |
| Chemistry/Technology | CMOS |
| Schedule B | 8542390000 |
| Applications | Automotive |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Load Voltage | 5 V to 28 V |
| Motor Type - AC, DC | Brushed DC |
Stock: 2
Distributors
pcbx
pcbxUnit Price$20.28979
Ext.Price$20.28979
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $20.28979 | $20.28979 |
| 10 | $19.84079 | $198.40790 |
| 25 | $19.40179 | $485.04475 |
